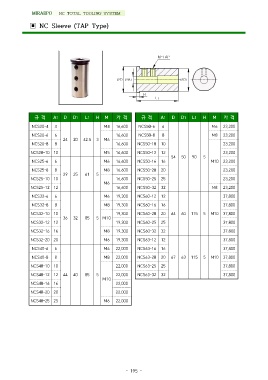

MIRAEPO NC TOTAL TOOLING SYSTEM
▣ NC Sleeve (TAP Type)
M-TAP
∅D ∅A1 ∅D1
H
L1
규 격 A1 D D1 L1 H M 가 격 규 격 A1 D D1 L1 H M 가 격
NCS20-4 4 M4 16,600 NCS50-6 6 M6 23,200
NCS20-6 6 16,600 NCS50-8 8 M8 23,200
24 20 42.5 3 M6
NCS20-8 8 16,600 NCS50-10 10 23,200
NCS20-10 10 M5 16,600 NCS50-12 12 23,200
54 50 90 5
NCS25-6 6 M6 16,600 NCS50-16 16 M10 23,200
NCS25-8 8 M8 16,600 NCS50-20 20 23,200
29 25 61 5
NCS25-10 10 16,600 NCS50-25 25 23,200
M6
NCS25-12 12 16,600 NCS50-32 32 M8 23,200
NCS32-6 6 M6 19,300 NCS60-12 12 37,800
NCS32-8 8 M8 19,300 NCS60-16 16 37,800
NCS32-10 10 19,300 NCS60-20 20 64 60 115 5 M10 37,800
36 32 85 5 M10
NCS32-12 12 19,300 NCS60-25 25 37,800
NCS32-16 16 M8 19,300 NCS60-32 32 37,800
NCS32-20 20 M6 19,300 NCS63-12 12 37,800
NCS40-6 6 M6 22,000 NCS63-16 16 37,800
NCS40-8 8 M8 22,000 NCS63-20 20 67 63 115 5 M10 37,800
NCS40-10 10 22,000 NCS63-25 25 37,800
NCS40-12 12 44 40 85 5 22,000 NCS63-32 32 37,800
M10
NCS40-16 16 22,000
NCS40-20 20 22,000
NCS40-25 25 M6 22,000
