MIRAEPO NC TOTAL TOOLING SYSTEM

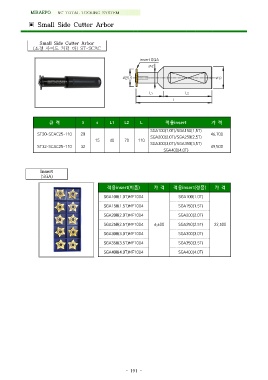

▣ Small Side Cutter Arbor
Small Side Cutter Arbor
(소경 사이드 커터 바) ST-SCAC
insert SGA ∅D
∅d
L2
∅25.5 L
L1
규격 D d L1 L2 L 적용insert 가격
ST20-SCAC25-110 20 SGA100(1.0T)/SGA150(1.5T) 46,700
15 40 70 110 SGA200(2.0T)/SGA250(2.5T)
ST32-SCAC25-110 32 SGA300(3.0T)/SGA350(3.5T) 49,500
SGA400(4.0T)
Insert
(SGA)
적용insert(비품) 가격 적용insert(정품) 가격
SGA100(1.0T)MF1004 6,600 SGA100(1.0T) 22,500
SGA150(1.5T)MF1004 SGA150(1.5T)
SGA200(2.0T)MF1004 SGA200(2.0T)
SGA250(2.5T)MF1004 SGA250(2.5T)
SGA300(3.0T)MF1004 SGA300(3.0T)
SGA350(3.5T)MF1004 SGA350(3.5T)
SGA400(4.0T)MF1004 SGA400(4.0T)
- 191 -
